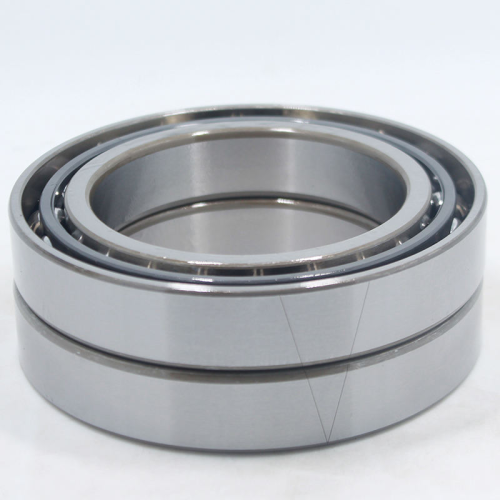

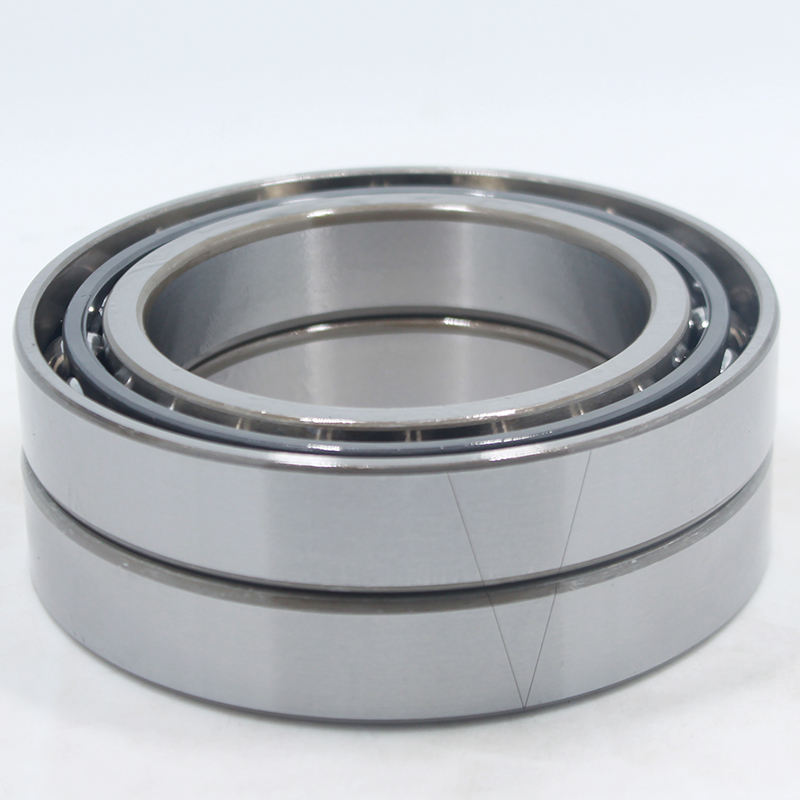

Single Row Angular Contact Ball Bearing 46308

The Angular Contact Ball Bearing 46308 is an older model, corresponding to the newer model 7308AC.

Basic dimensions: inner diameter 40mm, outer diameter 90mm, width 23mm.

Contact angle: 25°, belonging to the 70000AC angular contact ball bearing type.

Performance parameters: Taking the SKF 7308 ACCBM as an example, its basic dynamic load rating is 56kN, basic static load rating is 36kN, reference speed is 10,000 rpm, and limiting speed is 15,000 rpm.

Structural Features: Single-row Angular Contact Ball Bearings can only withstand axial loads in one direction. Radial loads will generate additional axial forces. They are typically used in pairs, such as back-to-back, face-to-face, or in tandem, to increase load capacity and limit axial displacement of the shaft.

Application areas: Suitable for high-speed running mechanical parts such as gearboxes, pumps, motors, clutches, etc., and can withstand combined radial and axial loads.

We have been focusing on the research and production of  Wheel Hub Bearing,Tapered Roller Bearing for many years, with a variety of models, supporting customized services, and providing OEM order services. If you would like to learn more detailed information about angular contact ball bearing 46308, please contact us
