Single Row Angular Contact Ball Bearing 7308AC

Single Row Angular Contact Ball Bearing 7308AC

Name: WeChat_20241117231304
Uploaded: 2024-12-25T04:11:11+08:00
Description: The Angular Contact Ball Bearing 7308AC is an angular contact ball bearing with a single-row ball structure, suitable

Get Latest Price

Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW,FCA
Min. Order:	2 Piece/Pieces
Transportation:	Ocean,Land,Air
Port:	QingDao,ShangHai,GuangZhou

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Brand: YZHB

Types Of: Ball

Structure: Angular Contact

Number Of Columns: Double Row, Single Row

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	According to customer needs

The file is encrypted. Please fill in the following information to continue accessing it

WeChat_20241117231304



Product Description

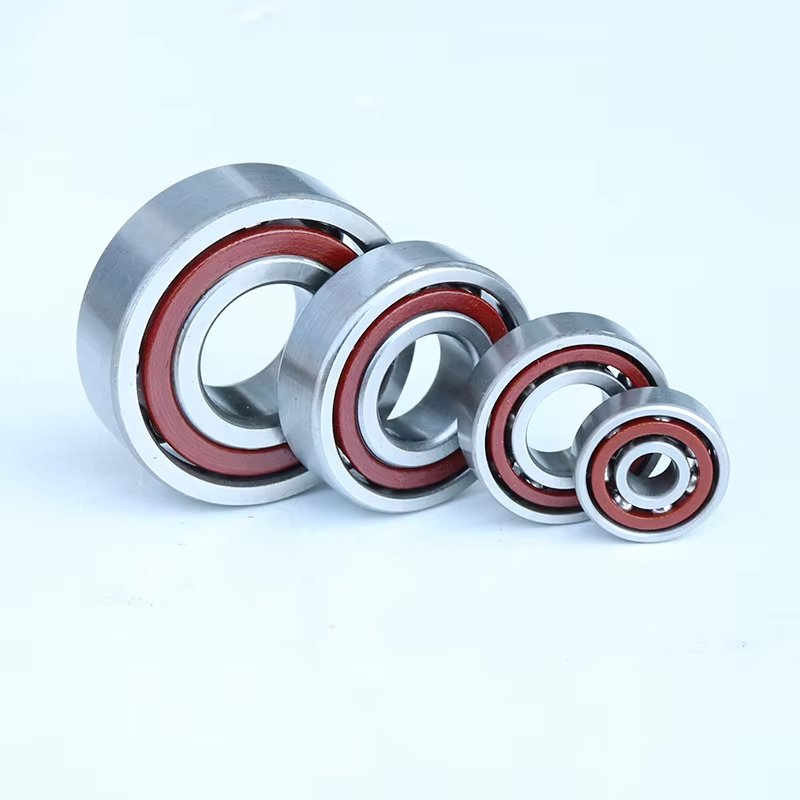

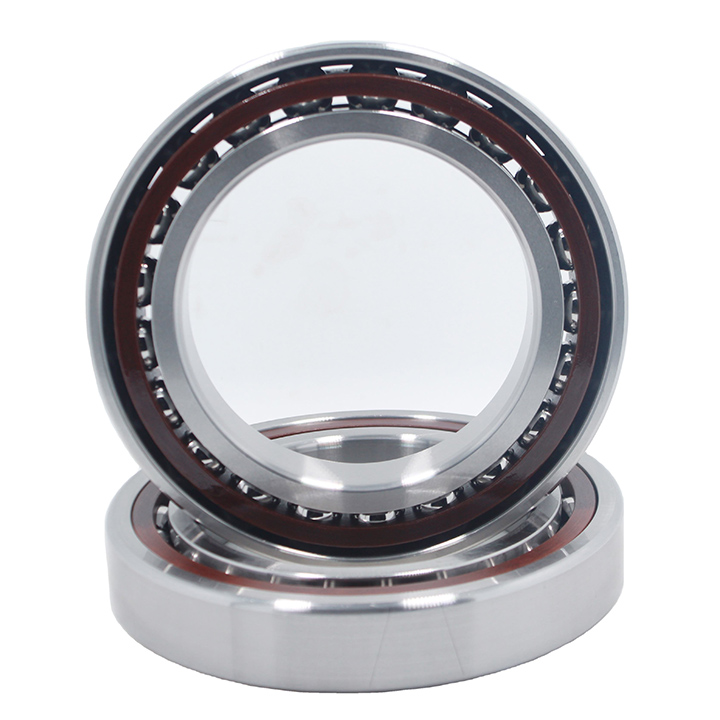

The Angular Contact Ball Bearing 7308AC is an angular contact ball bearing with a single-row ball structure, suitable for high-speed, high-precision rotation applications. Its 25° contact angle allows it to withstand both radial and combined loads. Made of chrome steel GCr15, it offers excellent wear resistance, strength, and corrosion resistance, ensuring bearing life and stability.

Basic Parameters of the Angular Contact Ball Bearing 7308AC

Model: 7308AC, previously model: 46308.

Inner Diameter: 40mm.

Outer Diameter: 90mm.

Width: 23mm.

Weight: Approximately 0.657kg.

Contact Angle: 25°.

Precision Grade: Commonly P6, with higher dimensional and running accuracy than the standard P0.

Angular Contact Ball Bearing 7308AC is an important bearing part, often used in industrial pumps, industrial gearboxes, motors and generators, compressors; wheel axles, gearboxes, etc. of trains and cars.
