Automotive Rear Front Wheel Hub Bearing DAC30540024

Automotive Rear Front Wheel Hub Bearing DAC30540024

Name: WeChat_20241118222428
Uploaded: 2024-12-25T04:11:38+08:00
Description: DAC30540024 is a double row angular contact ball wheel hub bearing suitable for automotive front and rear wheels. Its

Get Latest Price

Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA
Min. Order:	2 Piece/Pieces
Transportation:	Ocean,Land,Air
Port:	QingDao,GuangZhou,China

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Brand: YZHB

Place Of Origin: China

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

WeChat_20241118222428



Product Description

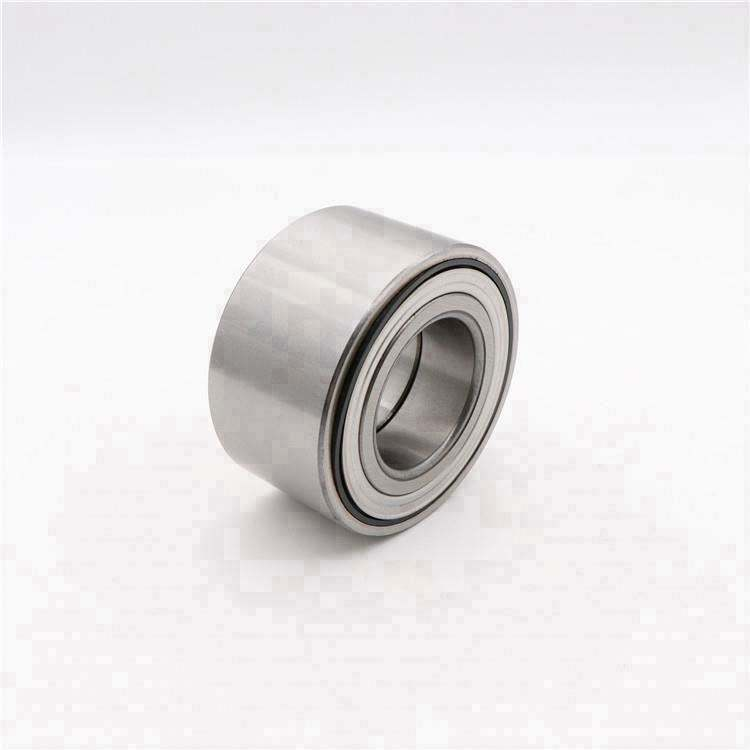

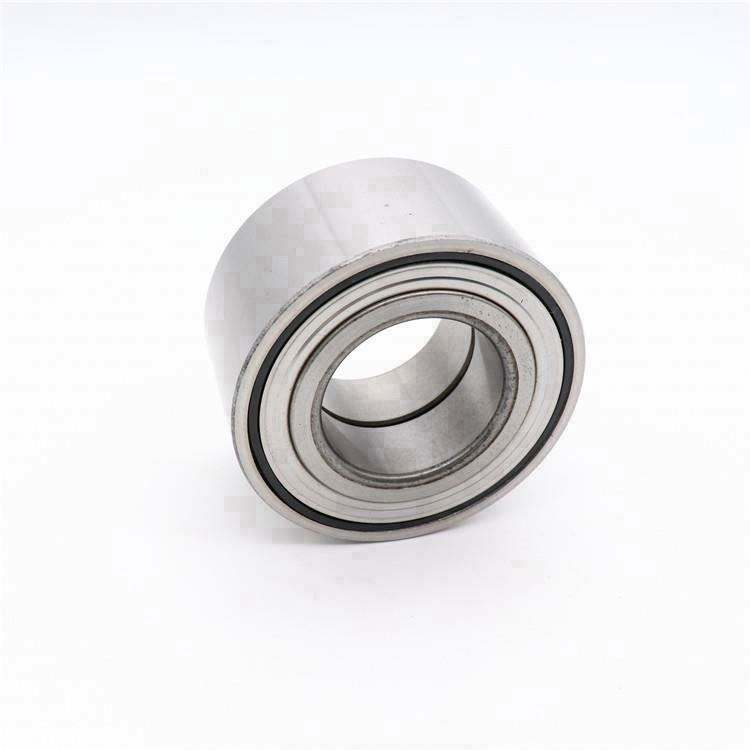

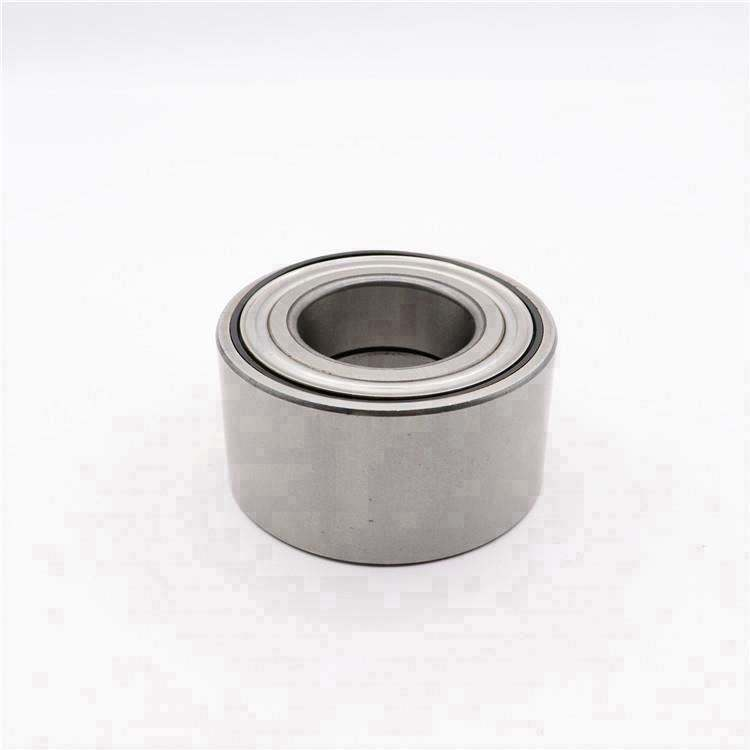

DAC30540024 is a double row angular contact ball Wheel Hub Bearing suitable for automotive front and rear wheels. Its core parameters are an inner diameter of 30mm, an outer diameter of 54mm, and a width of 24mm. It has high load-bearing capacity, maintenance free, and dust-proof sealing characteristics, and is widely used in passenger cars and light commercial vehicles.

一、 Core parameters and structure of the product

1.Dimensions

Inner diameter (d): 30mm

Outer diameter (D): 54mm

Width (B/C): 24mm (double row structure, consistent inner and outer ring width)

Sealing form: Double rubber sealing rings (2RS) are usually used to effectively prevent water and dust from entering and extend the bearing life.

2.structural characteristics

Double row angular contact design: consisting of an integral outer ring and two separable inner rings, it can simultaneously withstand axial and radial loads and is suitable for high load conditions.

Maintenance free design: Internally filled with high-performance grease (such as Shell Gadus S2), providing lifelong lubrication without the need for additional maintenance.

Compact structure: small size, light weight, easy to install on wheel hub units, saving space.

二、 Application scenarios and compatible vehicle models

1.main purpose

Suitable for the front and rear wheels of automobiles, as a key load-bearing and rotating component, ensuring smooth rotation of the wheels.

Some models integrate ABS induction magnetic coils and support anti lock braking systems (to be confirmed based on specific models).

2.Example of compatible vehicle models

Honda series: CRV (02-06 model), Odyssey (RA6, 00-04 model), Accord (CG, 97-02 model).

Other brands: Dongfeng Fengshen AX7 (15 models), Great Wall Haval H6 (11-16 models), etc.

Light commercial vehicles: Some pickup trucks and small trucks have front wheels.
