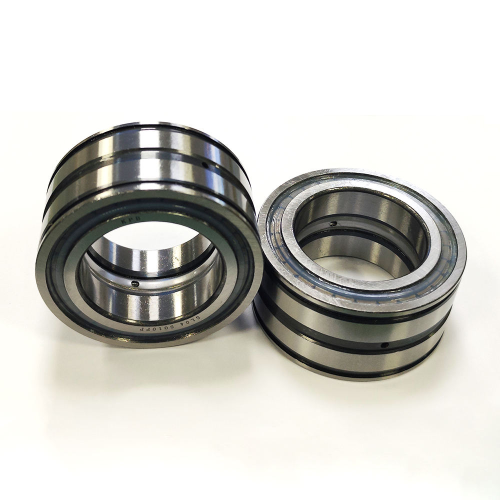

NR Double Row Cylindrical Roller Bearing SL045010

NR Double Row Cylindrical Roller Bearing SL045010

Name: WeChat_20241118222428
Uploaded: 2024-12-25T04:11:38+08:00
Description: Double Row Cylindrical Roller Bearing SL045010 is a type of bearing with specific characteristics and applications.

Get Latest Price

Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW,FCA
Min. Order:	2 Piece/Pieces
Transportation:	Ocean,Land,Air
Port:	QingDao,TianJin,GuangZhou

Inner Diameter Size:

50 mm

Outer Diameter:

80 mm

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Brand: YZHB

Types Of: Roller

Number Of Columns: Double Row

Place Of Origin: China

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

WeChat_20241118222428



Product Description

Double Row Cylindrical Roller Bearing SL045010 is a type of bearing with specific characteristics and applications. Here is a detailed introduction:

Basic Parameters

Bore Diameter: 50 mm

Outer Diameter: 80 mm

Width: 40 mm

Weight: Approximately 0.713 kg (some sources show about 0.75 kg or 0.76 kg)

Material: Usually made of 52100 chrome steel

Limiting Speed: 1800 rpm (varies by source, some show 2000 rpm or 2600 rpm for 脂润滑)

Dynamic Load Rating: 102.00 kN

Static Load Rating: 151.00 kN

Structural Features of SL045010 Cylindrical Roller Bearing:

Double-row Full-complement Design: It adopts a double-row structure and is filled with the maximum number of cylindrical rollers without a cage, which enables it to bear a large radial load and has high load-carrying capacity.

Sealing Structure: The -PP suffix indicates that it has contact seals on both sides, which can prevent lubricant leakage and block external dust, impurities, etc., reducing maintenance costs and prolonging the service life.

Axially Split Inner Ring: The inner ring is axially split and 1 mm wider than the outer ring, fixed together by a rolled-in steel strip, which makes the installation and disassembly of the bearing more convenient.

Application Areas of SL045010 Cylindrical Roller Bearing:

Heavy-duty Mechanical Equipment: Such as excavators, loaders and other heavy engineering vehicles.

High-speed Running Equipment: Such as motors, fans, water pumps and other equipment that require high-speed running.

Precision Mechanical Equipment: Such as CNC machine tools, precision measuring instruments and other occasions that require high-precision operation.
