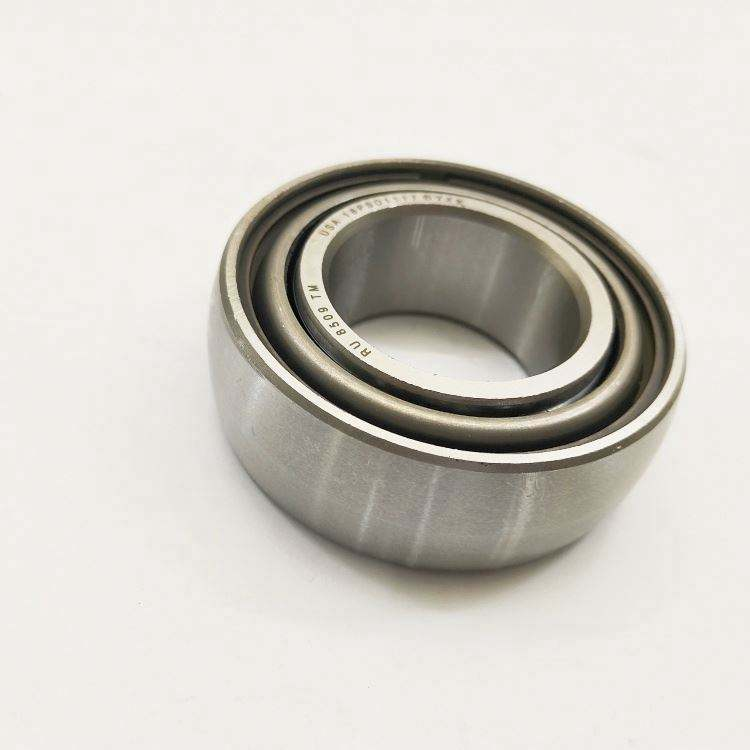

Round Bore Agricultural Machinery Bearing 5203KPP2

Round Bore Agricultural Machinery Bearing 5203KPP2

Name: WeChat_20241117231304
Uploaded: 2024-12-25T04:11:11+08:00
Description: 5203KPP2 Agricultural Bearing belongs to double row angular contact ball bearings, designed specifically for

Get Latest Price

Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FCA
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land,Air
Port:	QingDao,TianJin,ShangHai

Inner Diameter Size:

16.25mm

Outer Diameter:

40mm

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: 5203KPP2

Brand: YZHB

Types Of: Roller

Number Of Columns: Double Row

Place Of Origin: China

Precision Rating: P0,P6, P5, or as requested

Type: Agricultural Machinery Bearing

Material: Chrome steel

Vibration: ZV1, ZV2, ZV3, or as requested

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant,

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	According to customer needs

The file is encrypted. Please fill in the following information to continue accessing it

WeChat_20241117231304



Product Description

5203KPP2 Agricultural Bearing belongs to double row Angular Contact Ball Bearings, designed specifically for agricultural machinery. The material is usually chromium steel (GCR15), and the surface treatment may include anti rust coating to adapt to the humid environment of farmland.

Structural characteristics of 5203KPP2 Agricultural Bearing:

1. Dimensional adaptability

The typical dimensions are an inner diameter of 16.25mm (0.64 inches), an outer diameter of 40mm, and a width of 39.12mm. The compact design is suitable for compact transmission components of agricultural machinery, such as the rotating shaft system of no till machines and seeders.

2. Double row angular contact design

There are two rows of steel balls on each side of the inner ring, forming a 30 ° contact angle, which can simultaneously withstand radial loads and bidirectional axial loads, adapting to the complex stress environment of agricultural machinery (such as the composite load of harvester blade shaft and baler transmission shaft).

3. Sealing performance enhancement

Adopting a double lip seal structure (such as "Double Lip Seals"), it effectively blocks the invasion of dust, straw debris, and moisture in farmland, extending the life of bearings. Some models (such as 5203KYY2) may use rubber sealing rings to further enhance dust and water resistance levels.

YZHB is committed to providing an exceptional experience for all our clients. We supply not only high-quality 5203KPP2 Agricultural Bearing,There is also a complete range of car Wheel Hub Bearing models with stable performance, providing customized production and supporting non-standard size and sealing structure adjustment.
